Production

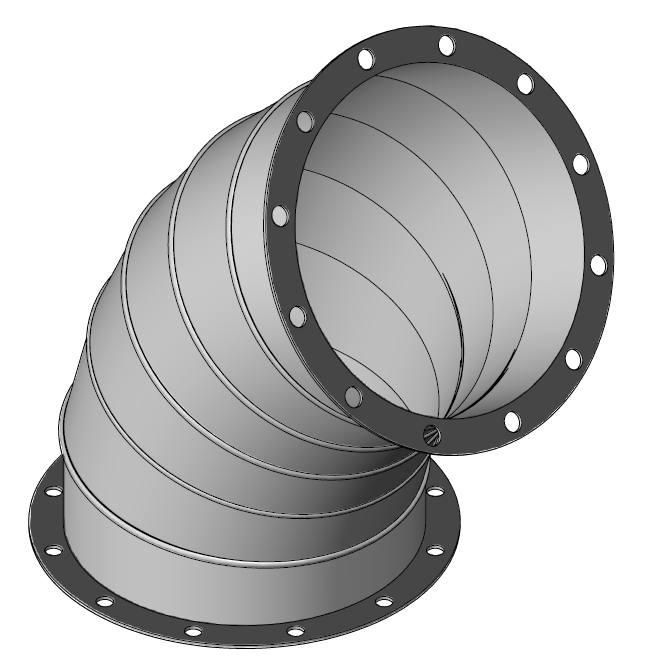

Flanged 6-segment bends are designed for pneumatic conveying systems
- Flanges are not fixed – can be rotated
- Use sealant for sealing
- Made of galvanized sheet steel, thickness 0.7–1.0 mm

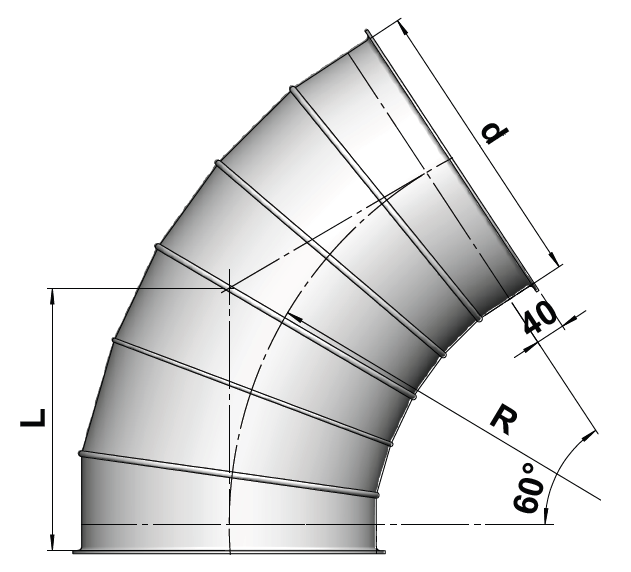

- Bending radius R = 2.0 × d (d – bend diameter)
- Length to center axis L = R × 0,58 + 40 mm
Products
Code
Name
Unit of measure
PAF-60-120
Bend PAF 60° 120
pcs.
PAF-60-125
Bend PAF 60° 125
pcs.
PAF-60-140
Bend PAF 60° 140
pcs.
PAF-60-160
Bend PAF 60° 160
pcs.
PAF-60-180
Bend PAF 60° 180
pcs.
PAF-60-200
Bend PAF 60° 200
pcs.
PAF-60-225
Bend PAF 60° 225
pcs.
PAF-60-250
Bend PAF 60° 250
pcs.
PAF-60-280
Bend PAF 60° 280
pcs.
PAF-60-315
Bend PAF 60° 315
pcs.
PAF-60-355
Bend PAF 60° 355
pcs.
PAF-60-400
Bend PAF 60° 400
pcs.
PAF-60-450
Bend PAF 60° 450
pcs.
PAF-60-500
Bend PAF 60° 500
pcs.
PAF-60-560
Bend PAF 60° 560
pcs.
PAF-60-630
Bend PAF 60° 630
pcs.
PAF-60-710
Bend PAF 60° 710
pcs.
PAF-60-800
Bend PAF 60° 800
pcs.
PAF-60-900
Bend PAF 60° 900
pcs.
PAF-60-1000
Bend PAF 60° 1000
pcs.
PAF-60-1120
Bend PAF 60° 1120
pcs.
PAF-60-1250
Bend PAF 60° 1250
pcs.
