Production

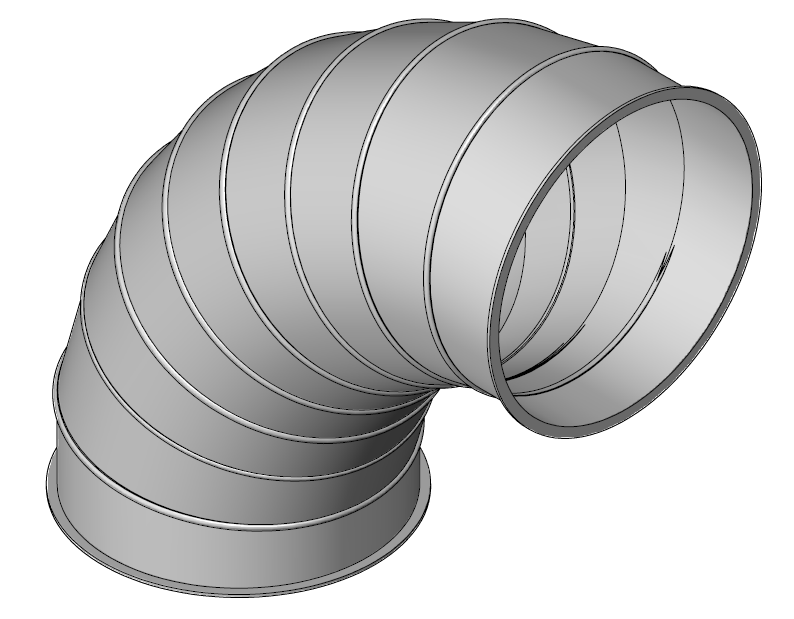

9-segment bends are designed for pneumatic conveying systems
- 7 mm lipped edges for pull ring connections
- Connections with pull rings are recommended for diameters up to 500 mm
- For sealing, use 50 mm adhesive PVC tape
- Made of galvanized sheet steel, thickness 0.7–1.0 mm
- Bending radius R = 2.0 × d (d – bend diameter)
- Bend height: R + d/2 + 40 mm
Products
Code
Name
Unit of measure
PAA-90-120
Bend PAA 90° 120
pcs.
PAA-90-125
Bend PAA 90° 125
pcs.
PAA-90-140
Bend PAA 90° 140
pcs.
PAA-90-160
Bend PAA 90° 160
pcs.
PAA-90-180
Bend PAA 90° 180
pcs.
PAA-90-200
Bend PAA 90° 200
pcs.
PAA-90-225
Bend PAA 90° 225
pcs.
PAA-90-250
Bend PAA 90° 250
pcs.
PAA-90-280
Bend PAA 90° 280
pcs.
PAA-90-315
Bend PAA 90° 315
pcs.
PAA-90-355
Bend PAA 90° 355
pcs.
PAA-90-400
Bend PAA 90° 400
pcs.
PAA-90-450
Bend PAA 90° 450
pcs.
PAA-90-500
Bend PAA 90° 500
pcs.
