Production

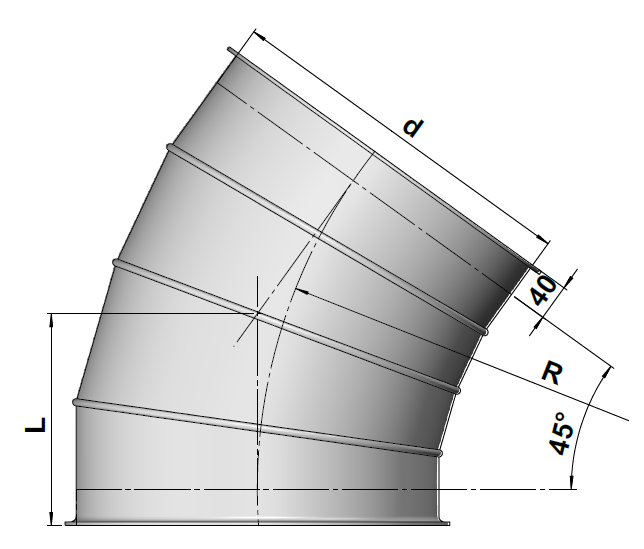

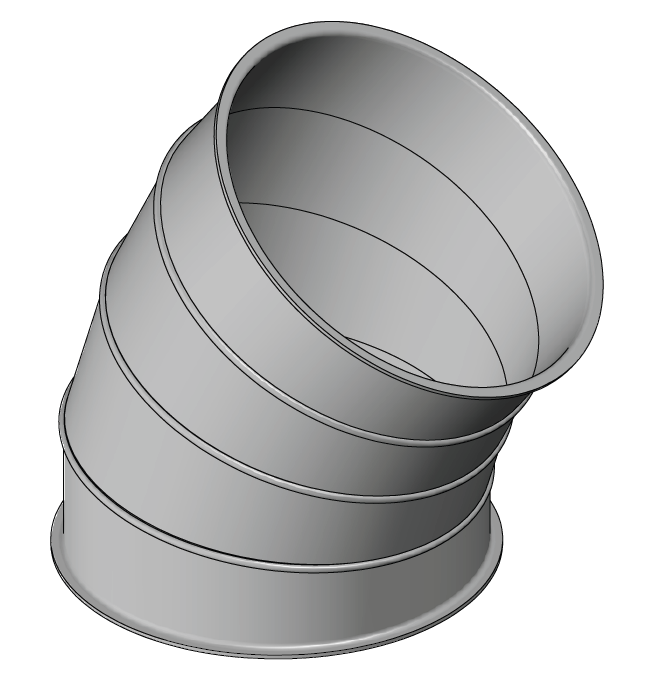

4-segment bends are designed for pneumatic conveying systems
- 7 mm lipped edges for pull ring connections
- For sealing, use 50 mm adhesive PVC tape
- Made of galvanized sheet steel, thickness 0.7–1.0 mm
- Bending radius R = 2.0 × d (d – bend diameter)
- Length to center axis L = R × 0,41 + 40 mm
Products
Code
Name
Unit of measure
PAA-45-120
Bend PAA 45° 120
pcs.
PAA-45-125
Bend PAA 45° 125
pcs.
PAA-45-140
Bend PAA 45° 140
pcs.
PAA-45-160
Bend PAA 45° 160
pcs.
PAA-45-180
Bend PAA 45° 180
pcs.
PAA-45-200
Bend PAA 45° 200
pcs.
PAA-45-225
Bend PAA 45° 225
pcs.
PAA-45-250
Bend PAA 45° 250
pcs.
PAA-45-280
Bend PAA 45° 280
pcs.
PAA-45-315
Bend PAA 45° 315
pcs.
PAA-45-355
Bend PAA 45° 355
pcs.
PAA-45-400
Bend PAA 45° 400
pcs.
PAA-45-450
Bend PAA 45° 450
pcs.
PAA-45-500
Bend PAA 45° 500
pcs.
