Flanged 7-segment bends are designed for pneumatic conveying systems
- Flanges are not fixed – can be rotated
- Use sealant for sealing
- Made of galvanized sheet steel, thickness 0.7–1.0 mm

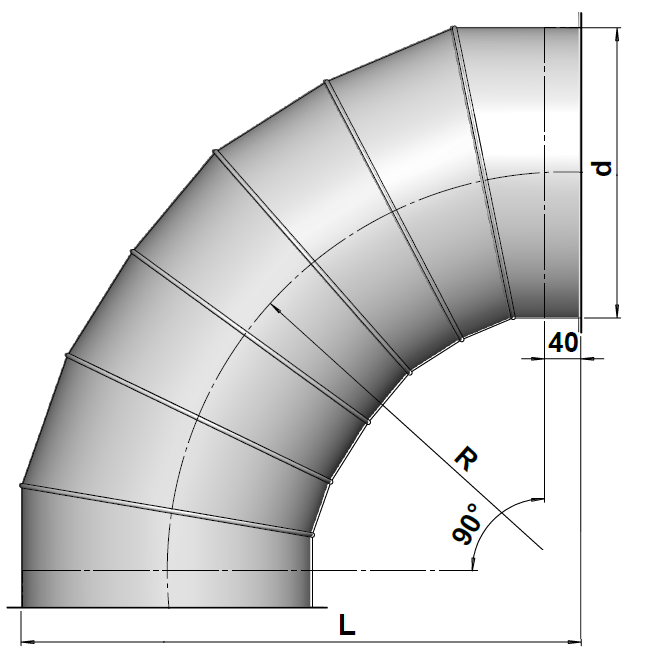

- Bending radius R = 1.5 × d (d – bend diameter)
- Bend height: R + d + 40 mm
Products
Code
Name
Unit of measure
DAF-90-120
Bend DAF 90° 120
pcs.
DAF-90-125
Bend DAF 90° 125
pcs.
DAF-90-140
Bend DAF 90° 140
pcs.
DAF-90-160
Bend DAF 90° 160
pcs.
DAF-90-180
Bend DAF 90° 180
pcs.
DAF-90-200
Bend DAF 90° 200
pcs.
DAF-90-225
Bend DAF 90° 225
pcs.
DAF-90-250
Bend DAF 90° 250
pcs.
DAF-90-280
Bend DAF 90° 280
pcs.
DAF-90-315
Bend DAF 90° 315
pcs.
DAF-90-355
Bend DAF 90° 355
pcs.
DAF-90-400
Bend DAF 90° 400
pcs.
DAF-90-450
Bend DAF 90° 450
pcs.
DAF-90-500
Bend DAF 90° 500
pcs.
DAF-90-560
Bend DAF 90° 560
pcs.
DAF-90-630
Bend DAF 90° 630
pcs.
DAF-90-710
Bend DAF 90° 710
pcs.
DAF-90-800
Bend DAF 90° 800
pcs.
DAF-90-900
Bend DAF 90° 900
pcs.
DAF-90-1000
Bend DAF 90° 1000
pcs.
DAF-90-1120
Bend DAF 90° 1120
pcs.
DAF-90-1250
Bend DAF 90° 1250
pcs.
