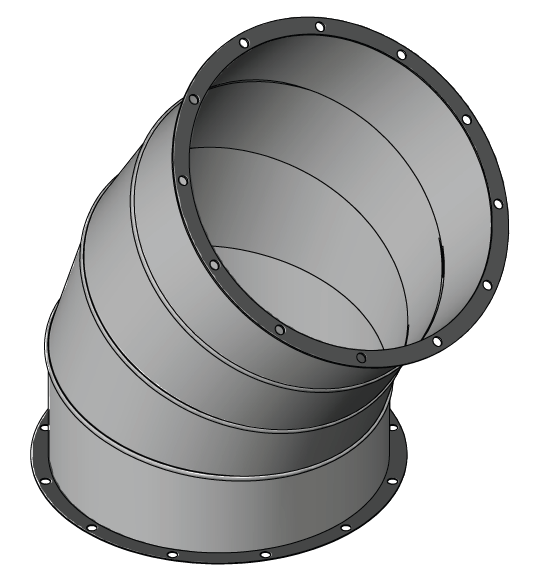

Flanged 4-segment bends are designed for pneumatic conveying systems
- Flanges are not fixed – can be rotated
- Use sealant for sealing
- Made of galvanized sheet steel, thickness 0.7–1.0 mm

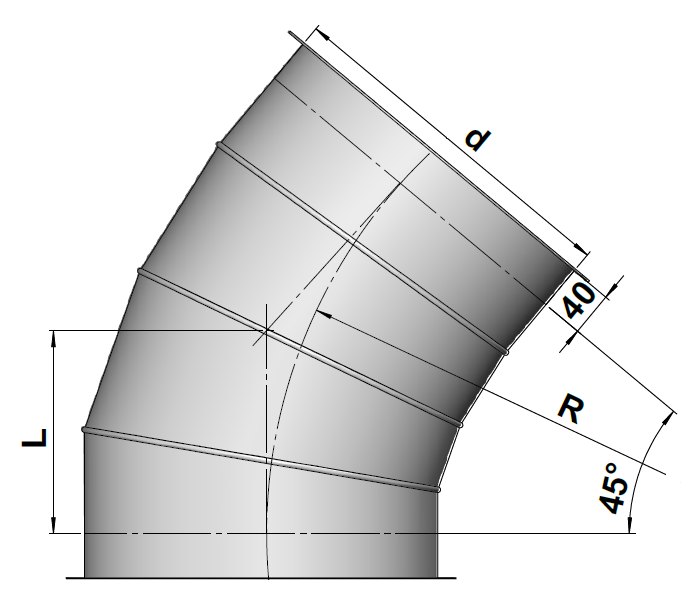

- Bending radius R = 1.5 × d (d – bend diameter)
- Length to center axis L = R × 0,41 + 40 mm
Products
Code
Name
Unit of measure
DAF-45-120
Bend DAF 45° 120
pcs.
DAF-45-125
Bend DAF 45° 125
pcs.
DAF-45-140
Bend DAF 45° 140
pcs.
DAF-45-160
Bend DAF 45° 160
pcs.
DAF-45-180
Bend DAF 45° 180
pcs.
DAF-45-200
Bend DAF 45° 200
pcs.
DAF-45-225
Bend DAF 45° 225
pcs.
DAF-45-250
Bend DAF 45° 250
pcs.
DAF-45-280
Bend DAF 45° 280
pcs.
DAF-45-315
Bend DAF 45° 315
pcs.
DAF-45-355
Bend DAF 45° 355
pcs.
DAF-45-400
Bend DAF 45° 400
pcs.
DAF-45-450
Bend DAF 45° 450
pcs.
DAF-45-500
Bend DAF 45° 500
pcs.
DAF-45-560
Bend DAF 45° 560
pcs.
DAF-45-630
Bend DAF 45° 630
pcs.
DAF-45-710
Bend DAF 45° 710
pcs.
DAF-45-800
Bend DAF 45° 800
pcs.
DAF-45-900
Bend DAF 45° 900
pcs.
DAF-45-1000
Bend DAF 45° 1000
pcs.
DAF-45-1120
Bend DAF 45° 1120
pcs.
DAF-45-1250
Bend DAF 45° 1250
pcs.
