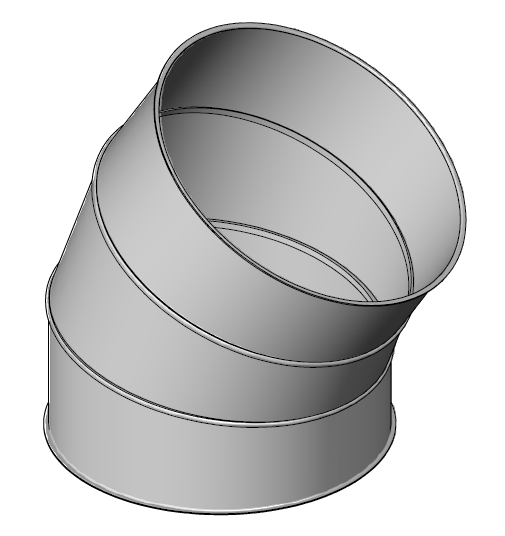

3-segment bends are designed for pneumatic conveying systems
- 7 mm lipped edges for pull ring connections
- For sealing, use 50 mm adhesive PVC tape
- Made of galvanized sheet steel, thickness 0.7–1.0 mm

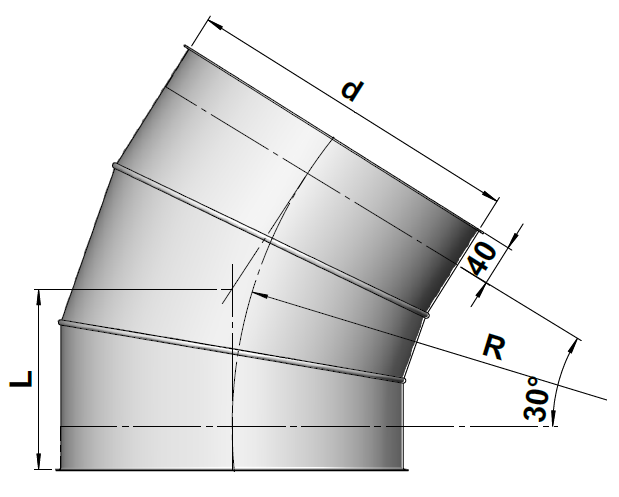

- Bending radius R = 1.5 × d (d – bend diameter)
- Length to center axis L = R × 0,27 + 40 mm
Products
Code
Name
Unit of measure
DAA-30-120
Bend DAA 30° 120
pcs.
DAA-30-125
Bend DAA 30° 125
pcs.
DAA-30-140
Bend DAA 30° 140
pcs.
DAA-30-160
Bend DAA 30° 160
pcs.
DAA-30-180
Bend DAA 30° 180
pcs.
DAA-30-200
Bend DAA 30° 200
pcs.
DAA-30-225
Bend DAA 30° 225
pcs.
DAA-30-250
Bend DAA 30° 250
pcs.
DAA-30-280
Bend DAA 30° 280
pcs.
DAA-30-315
Bend DAA 30° 315
pcs.
DAA-30-355
Bend DAA 30° 355
pcs.
DAA-30-400
Bend DAA 30° 400
pcs.
DAA-30-450
Bend DAA 30° 450
pcs.
DAA-30-500
Bend DAA 30° 500
pcs.
